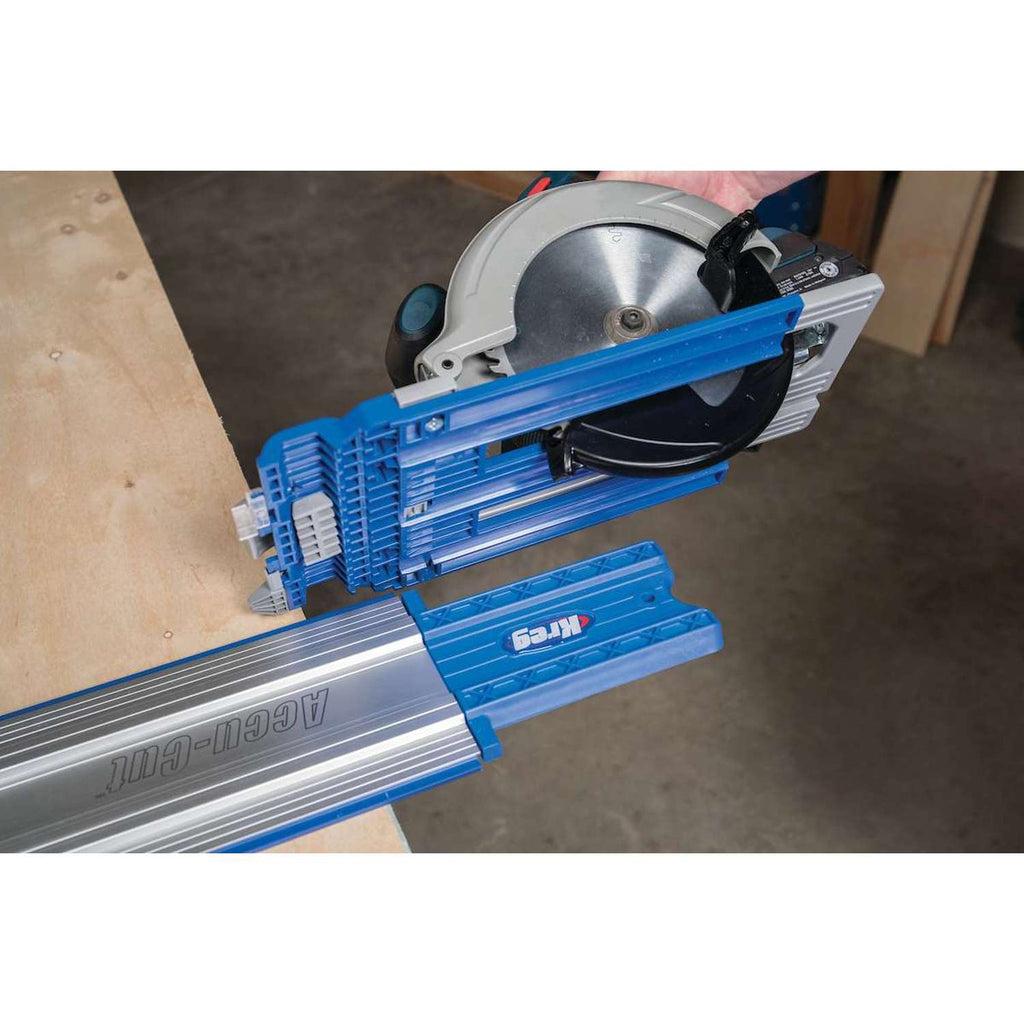

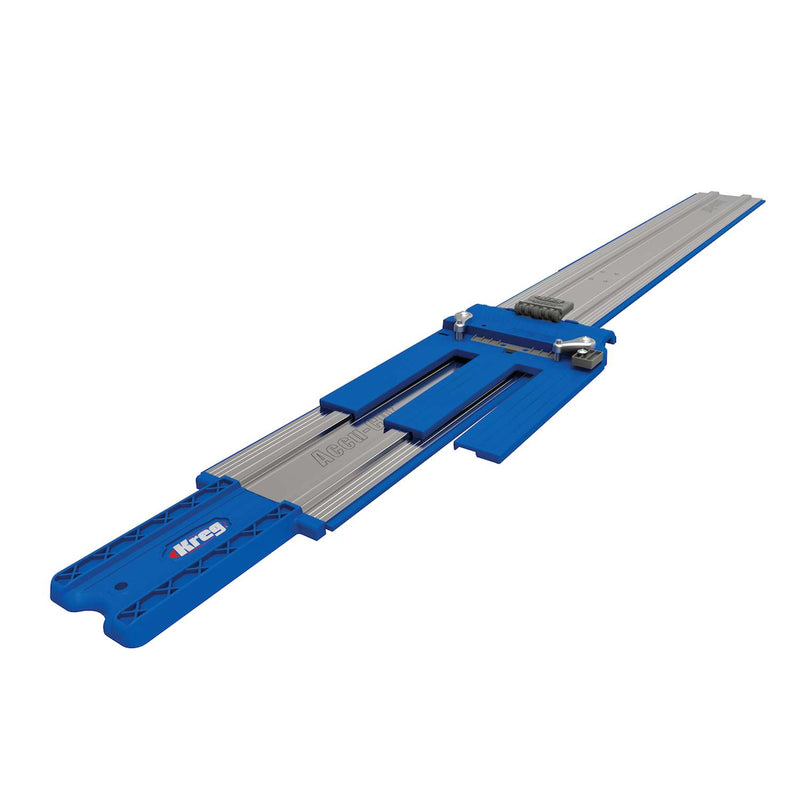

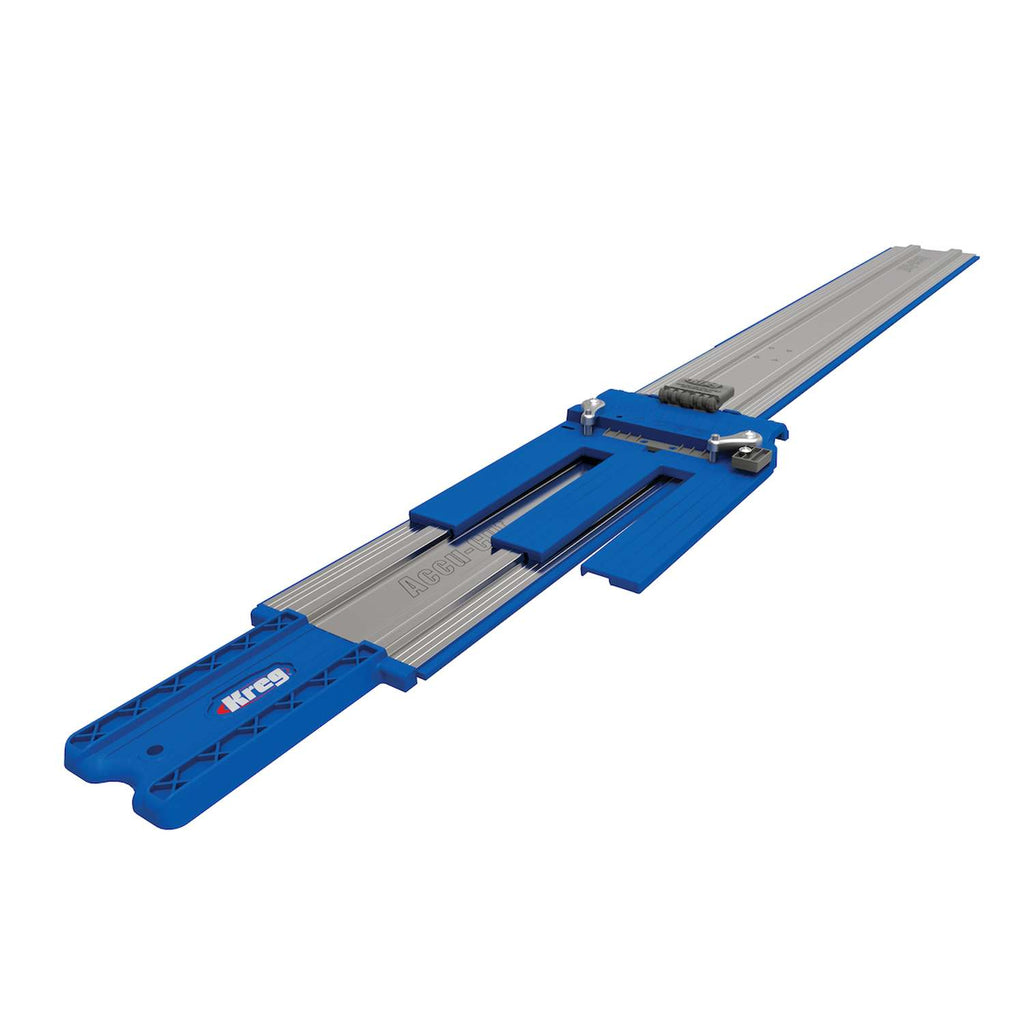

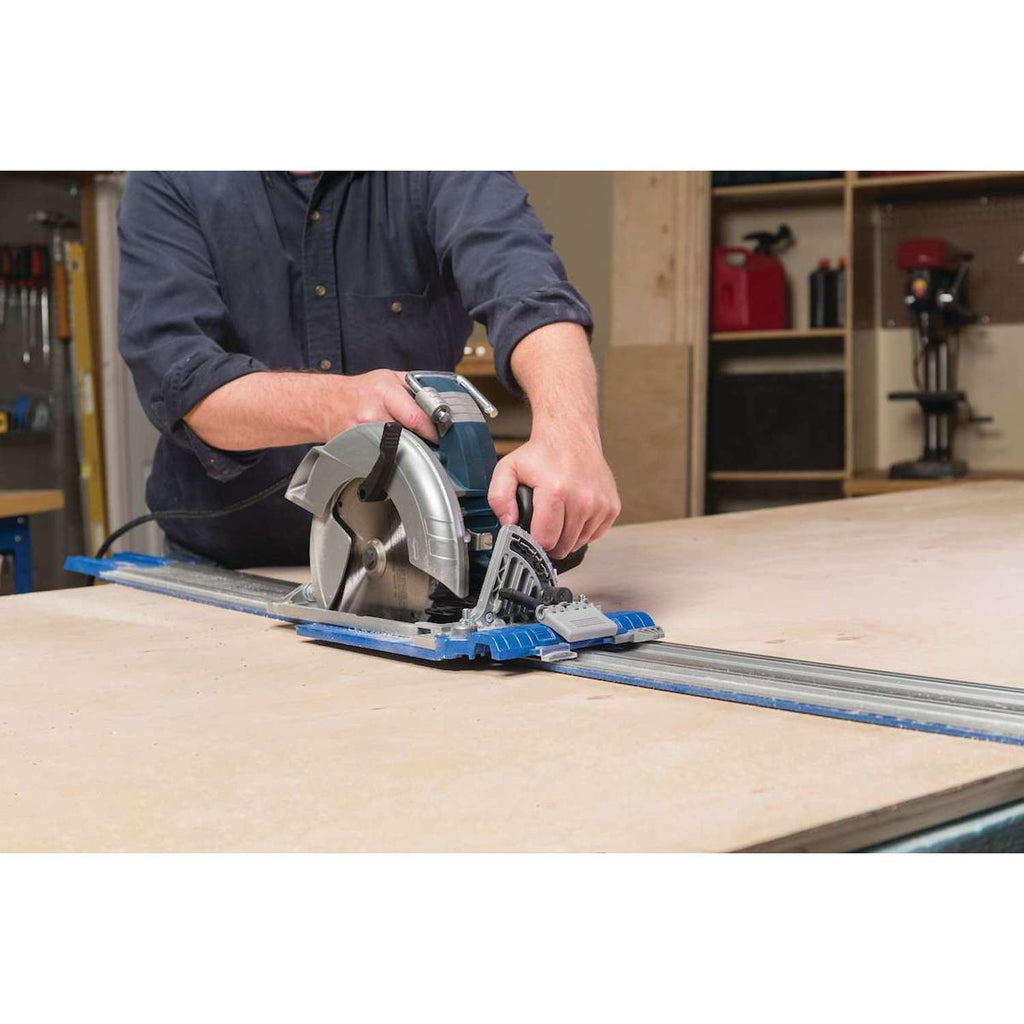

With the Accu-Cut™ guide rail, you can make straight and tear-free cuts. The Accu-Cut guides your hand-held circular saw along an aluminum rail and aligns the saw on the saw edge. The anti-slip coating holds the rail securely on the workpiece. The splinter guard ensures tear-free results. Mount your saw on the universal adapter and slide it onto the rail. Thanks to its mobility, you can now go to the workpiece with the guide rail and hand-held circular saw instead of having to do this work laboriously in the workshop. Optional T-slot screw clamps (KMS7520) can be used to secure the rail.
Highlights
Longitudinal and cross cuts as well as angled cuts (up to 1220 mm) in plywood, MDF and boards
To achieve precise cuts, simply align the guide rail with your markings
Thanks to the non-slip guide strips, you can fix the rail in place without having to clamp it
Avoid tears thanks to specially developed strips that protect the workpiece during cutting

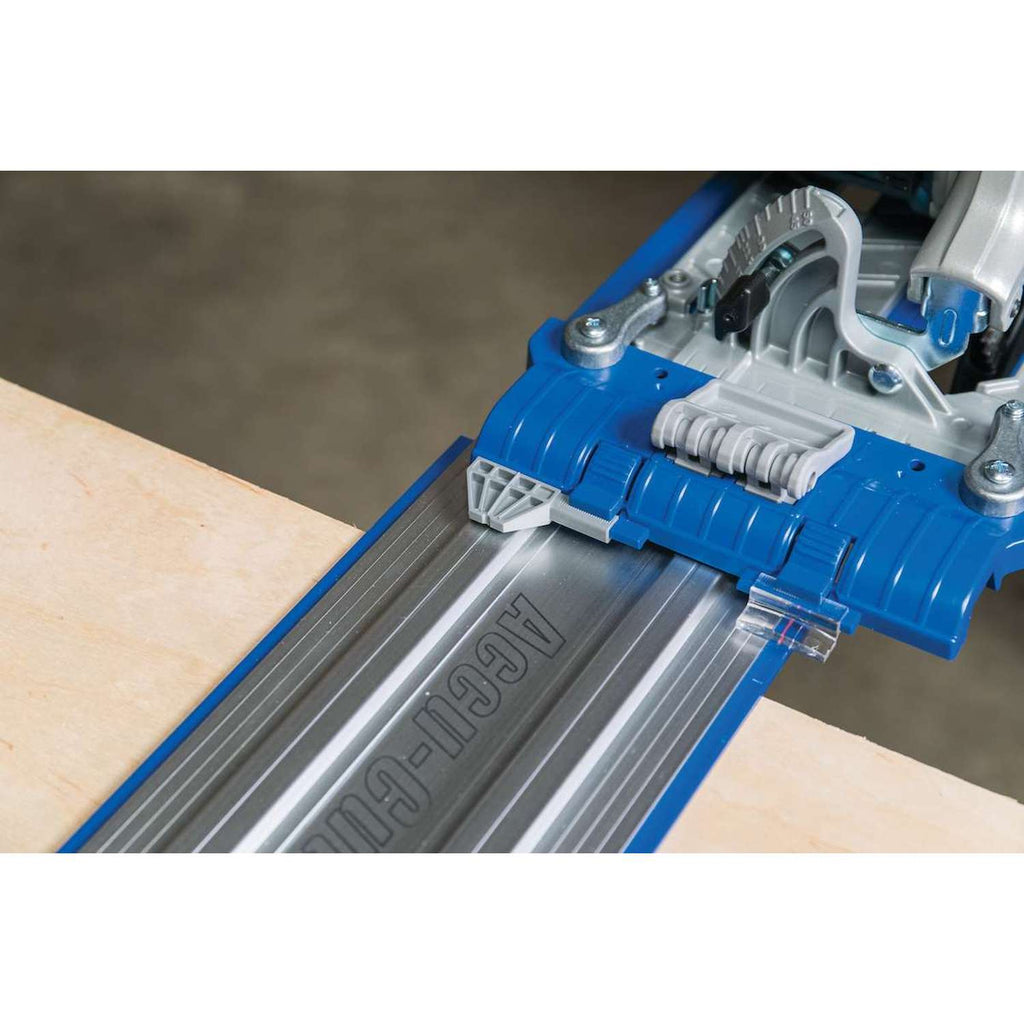

The starting block facilitates the start of the cut by supporting the saw and enabling smooth use of the saw blade guard
Almost all circular saws can be attached to the universal carriage, with right or left-hand saw blade
The universal carriage can be used with the Rip-Cut (KMA2685-INT).
Technical data
Material: Impact-resistant polymer, aluminum, hard and soft PVC
Anti-slip guide rails Universal Saw accepts saws with left and right saw blade
Starting block aligns the saw at the beginning of the cut Cutting length up to 1270 mm
Note: The slide can be attached to all circular hand saws that offer the option of clamping the two clamping screws on the front edge of the base plate. (Does not work for Bosch GKT55GCE)
Scope of delivery
1x Universal adapter
1x Starting block
2x 670 mm aluminum guide rails
2x Guide rail connectors
4x Anti-slip & splinter protection coating
1x Instruction manual
