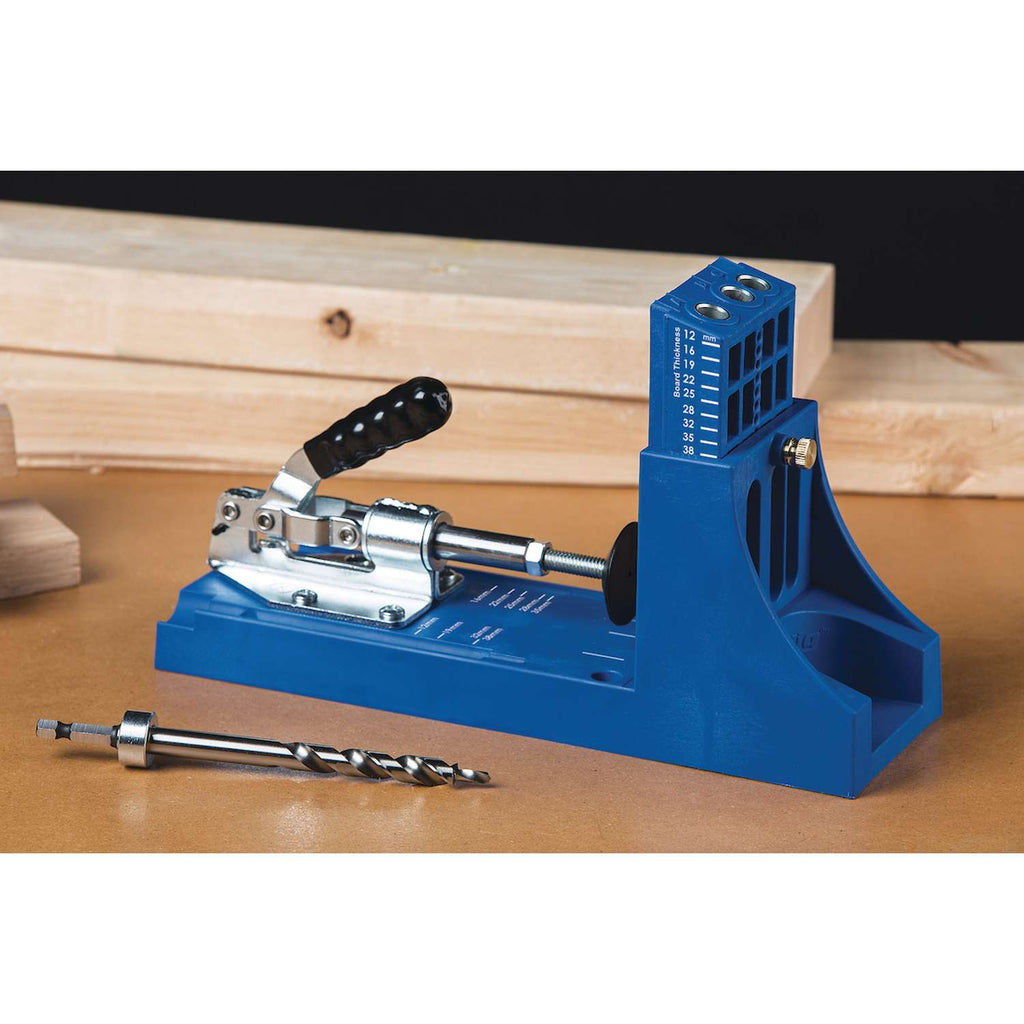

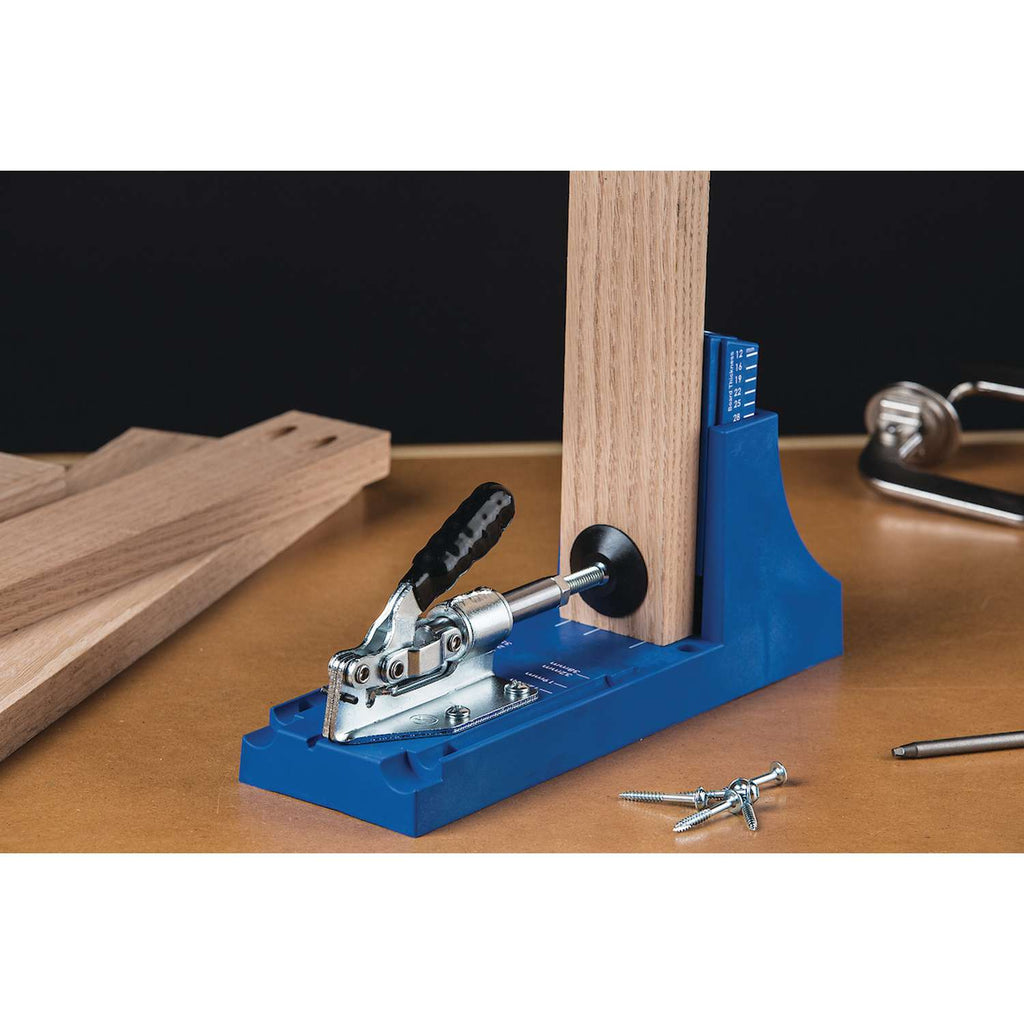

Product information "Kreg® Pocket-Hole Jig K4"

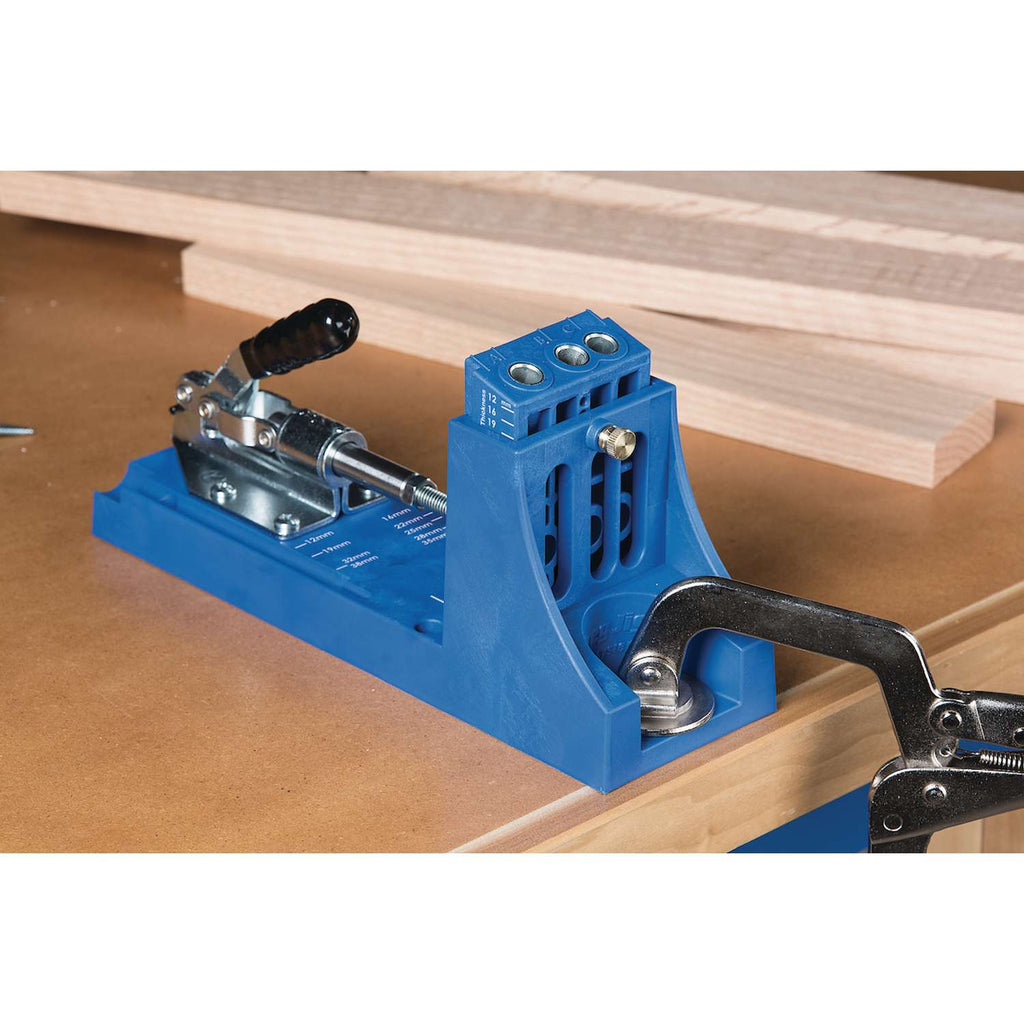

The Kreg® Pocket-Hole Jig K4 is the perfect choice for do-it-yourselfers, making it easy to get started with pocket hole wood joining solutions. It is ideal for completing projects such as shelving, cabinets, etc., or for making simple repairs around the house. The generous clamping surface along with the rear mounted lever clamp allow for a secure and stable connection of the drill template to your workbench. Independently sliding workpiece stops with nine depth settings make it easy to join materials 13-38 mm thick in 3 mm increments. The Kreg® Pocket-Hole Jig K4, like all Kreg® Pocket-Hole Jigs, features hardened steel drill guides, resulting in high drilling accuracy, reduced material tear-off and a clean pocket hole.
Note: You can use the versatile Kreg® Classic clamps or conventional clamps or screw clamps to attach the drill template to your workpiece.
Highlights
- Hardened steel drilling template guide (lifetime warranty)
- Large clamping surface
- Strong lever clamp for more stability
- Ideal for repair work - quickly concealed screwing instead of time-consuming restoration work
- Exit opening for wood chips
- Suitable for all material thicknesses from 12 to 38 mm (in 3 mm steps)
Technical Specifications
- Housing material: glass fiber reinforced nylon
- Number of drill guides: 3
- drill guide spacing: 14mm, 22mm, 36mm
- Clamping method: lever clamp on the base plate for workbench
- Settings for workpiece thicknesses: 12mm, 16mm, 19mm, 22mm, 25mm, 28mm, 32mm, 35mm and 38mm

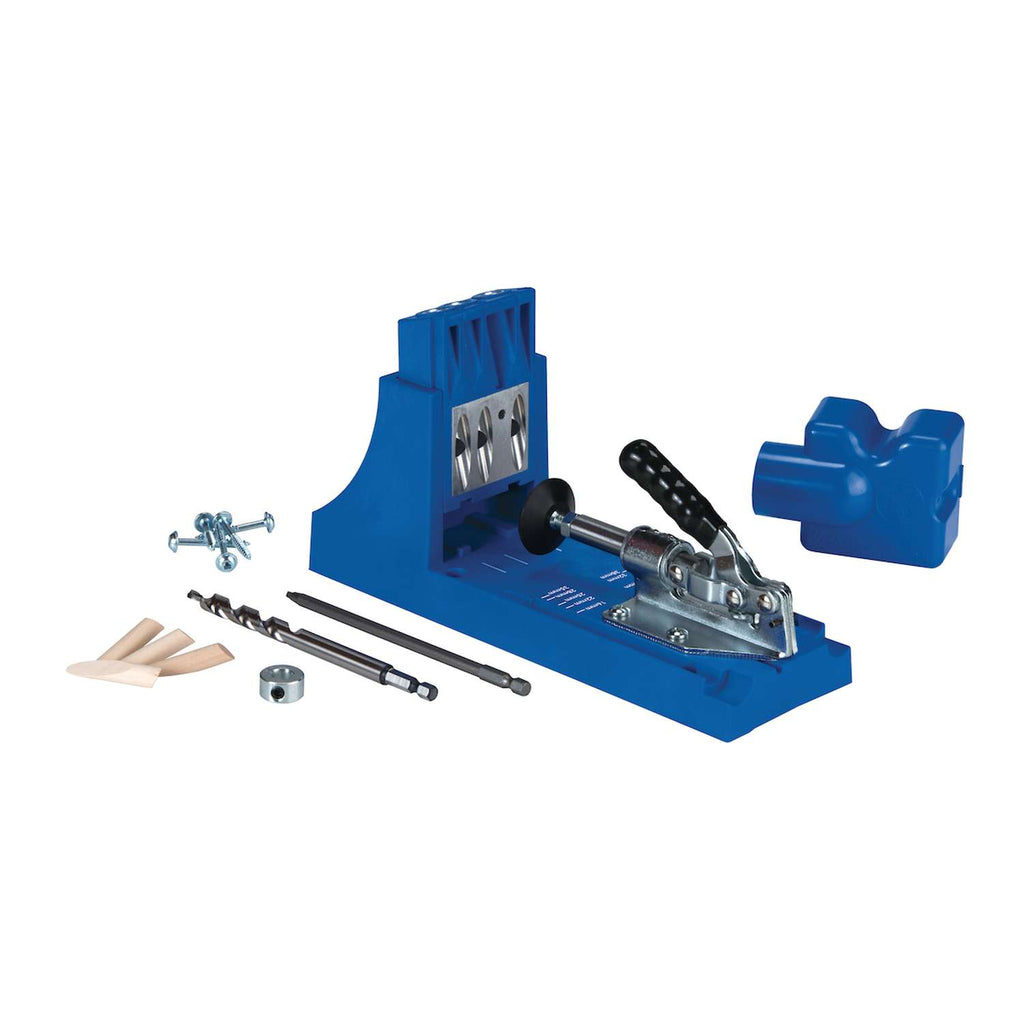

Includes
1x drilling template K4
1x step drill 152 mm
1x square bit
1x PNT paintable wooden dowel
1x SPS-C1 25mm coarse thread pocket hole screws
1x SML-C125 32mm coarse thread pocket hole screws
1x SML-F125 32mm fine thread pocket hole screws
1x SML-C150 38mm coarse thread pocket hole screws
1x SML-C250 64mm coarse thread pocket hole screws
1x user manual
