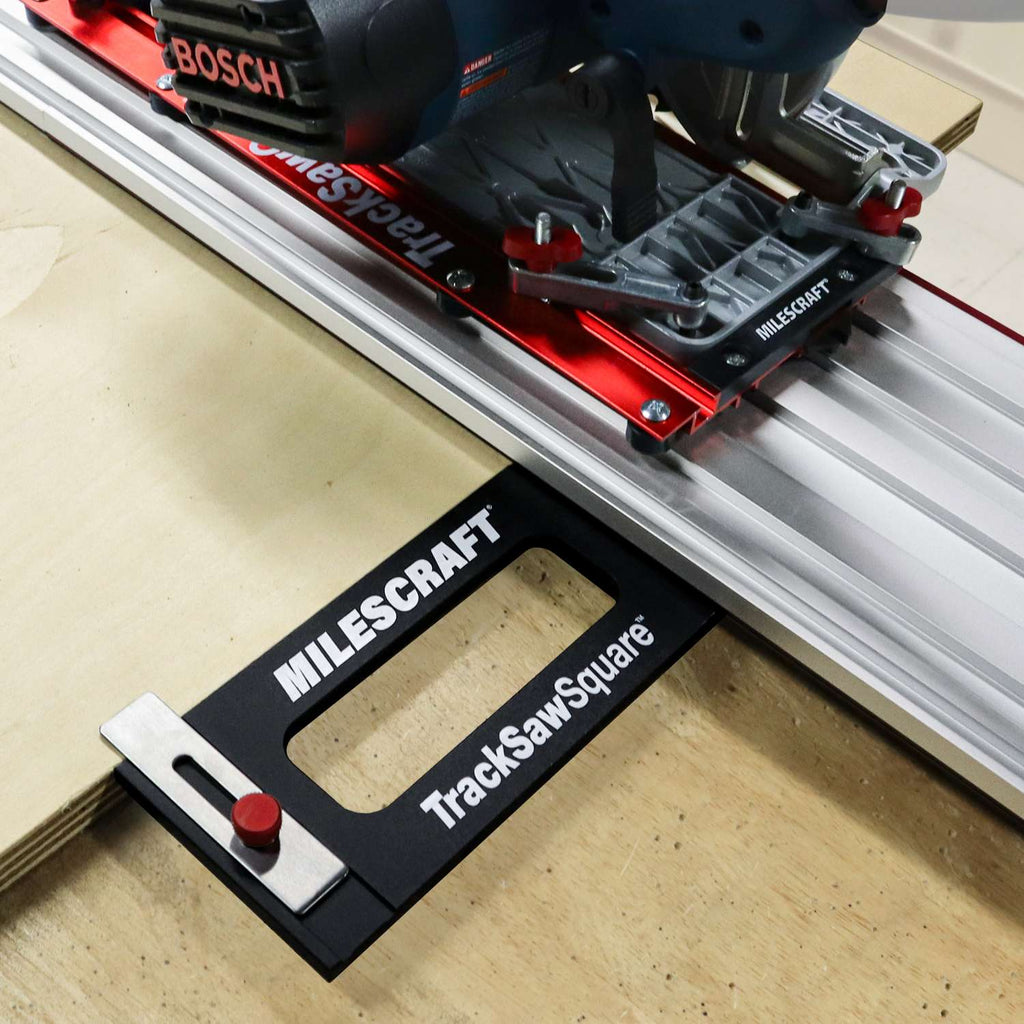

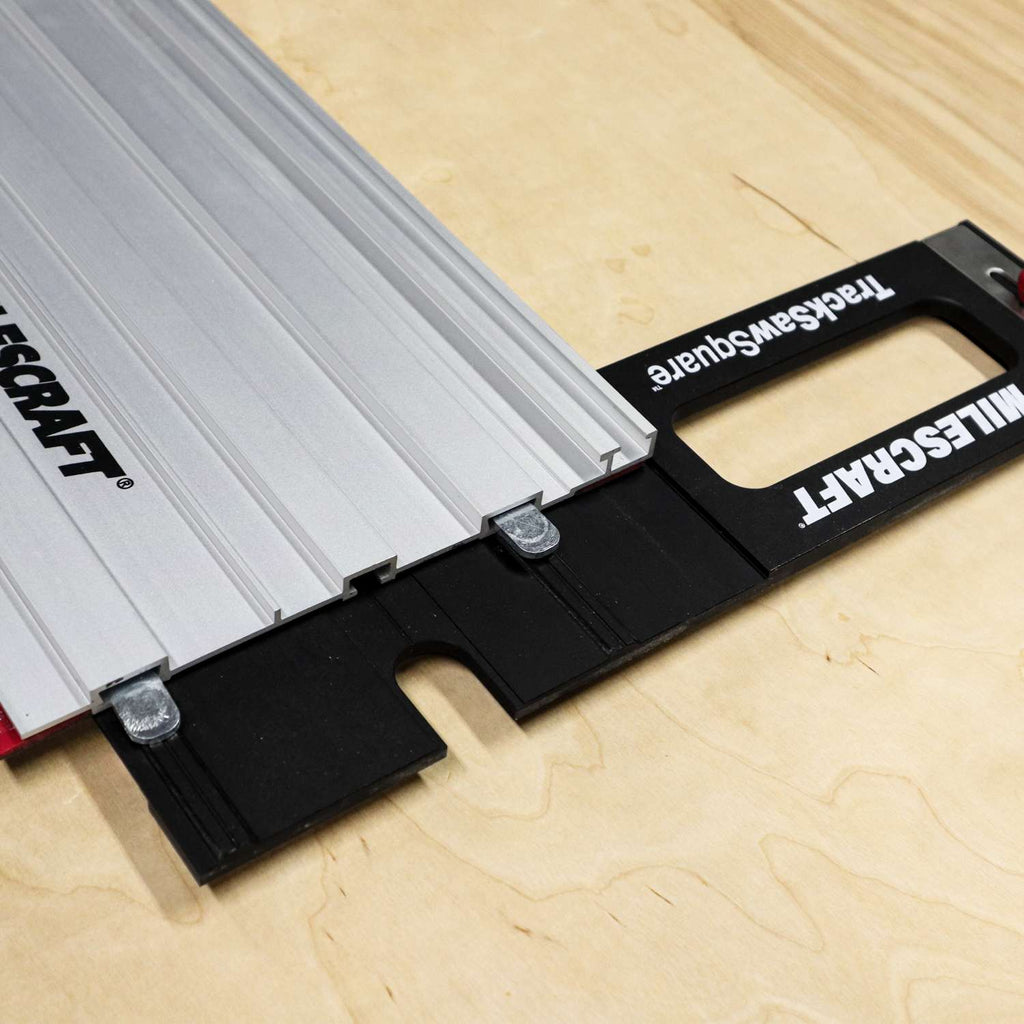

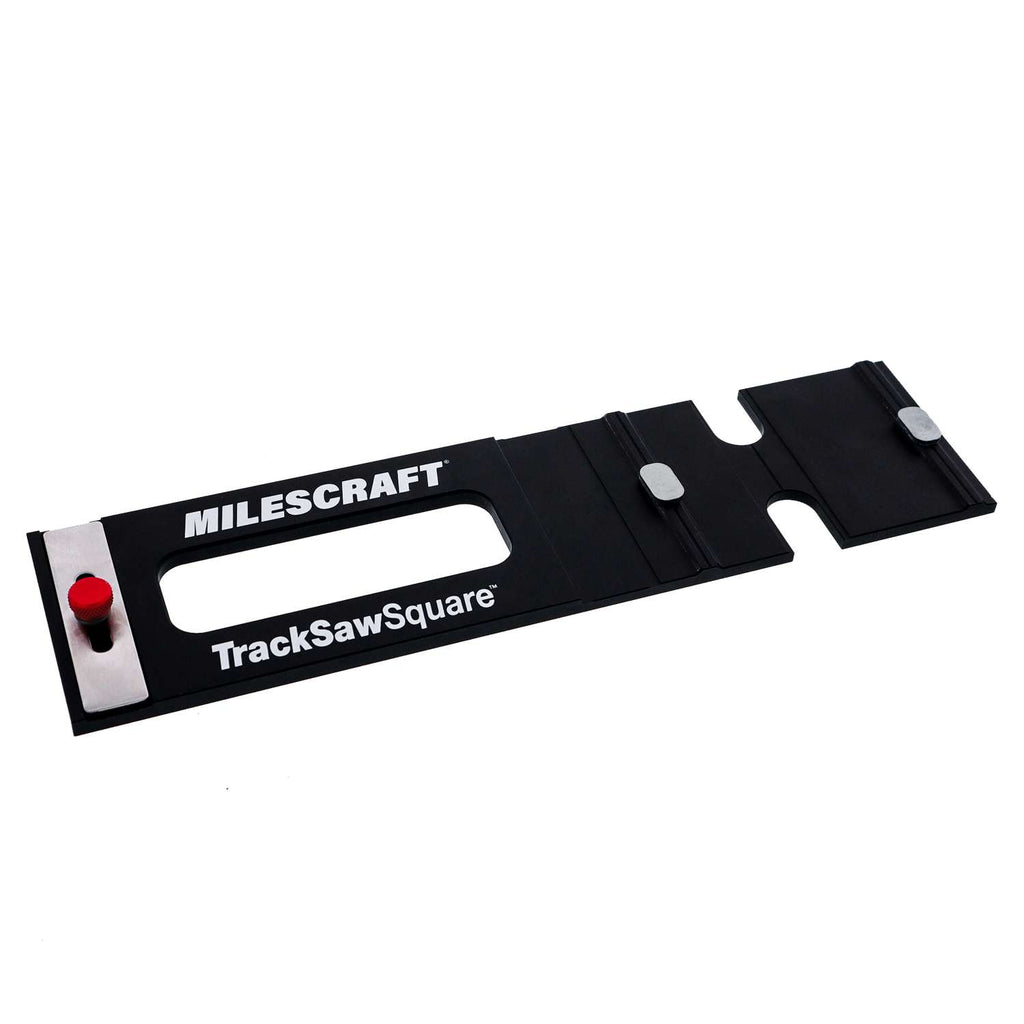

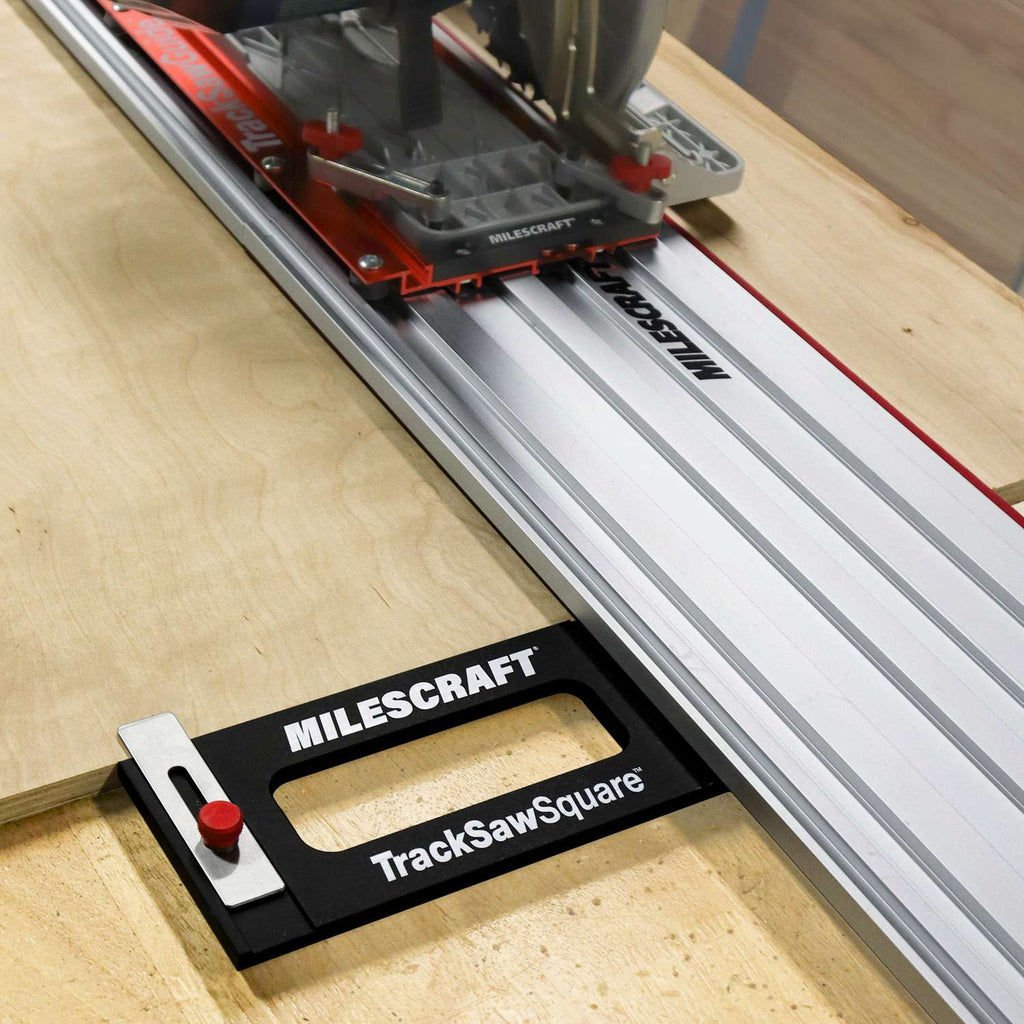

Increase the speed and accuracy in which you create square 90° cuts with the Milescraft TrackSawSquare™. The product quickly connects to the bottom of the proprietary Milescraft guide rail design, and pulls itself into perfect square using trapezoid alignment ridges. From a single measurement mark, you can rip entire boards straight and true from one end to the other.
The symmetrical design of the TrackSawSquare™ means it can be used on either end of your track saw setup. Anti-Tip Stabilizer provides more support when cutting and the entire low-profile body can be use on boards ½” and thicker while surface mounted.
TrackSawSquare™ Features
- Perfect 90° Cuts
- Self-centering design pulls the rail square to 90° from edge of work piece
- Low-Profile
- Thin profile design reduces weight and allows for use on boards ½” and thicker
- Anti-Tip
- Built in stabilizer bar catches the end of your work piece to prevent tipping

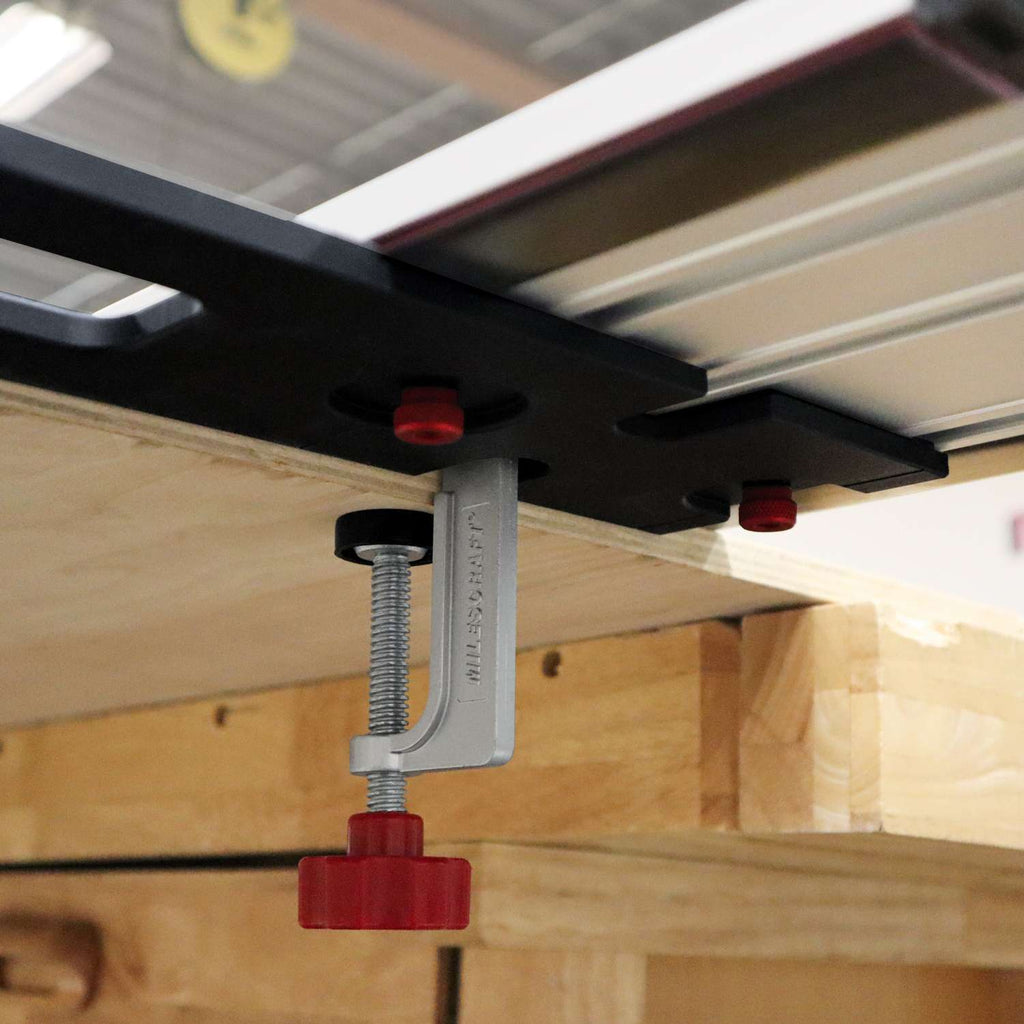

- Clamp Compatible
- Recessed notches allow the square to be used in tandem with Milescraft TrackClamps™
- Exclusively for the 1408 and 1409 Milescraft® GuideRails™ and TrackSawGuide™
Specs
Square Material:
Machined Aluminum
Length:
13-3/8″ (340mm)
Width:
3-1/2″ (89mm)
T-Bolt Thread:
M6 x 1 x12
T-Bolt Head:
12.5mm x 20mm
Compatible Tracks:
1408 GuideRails™, 1409 TrackSawGuide™, Kreg® Accu-Cut™
(Kreg® and Accu-Cut™ brands are owned by the Kreg Tool Company and not affiliated with Milescraft®)
Compatible Clamps:
4021 TrackClamps™ and 4025 CompactTrackClamps™
